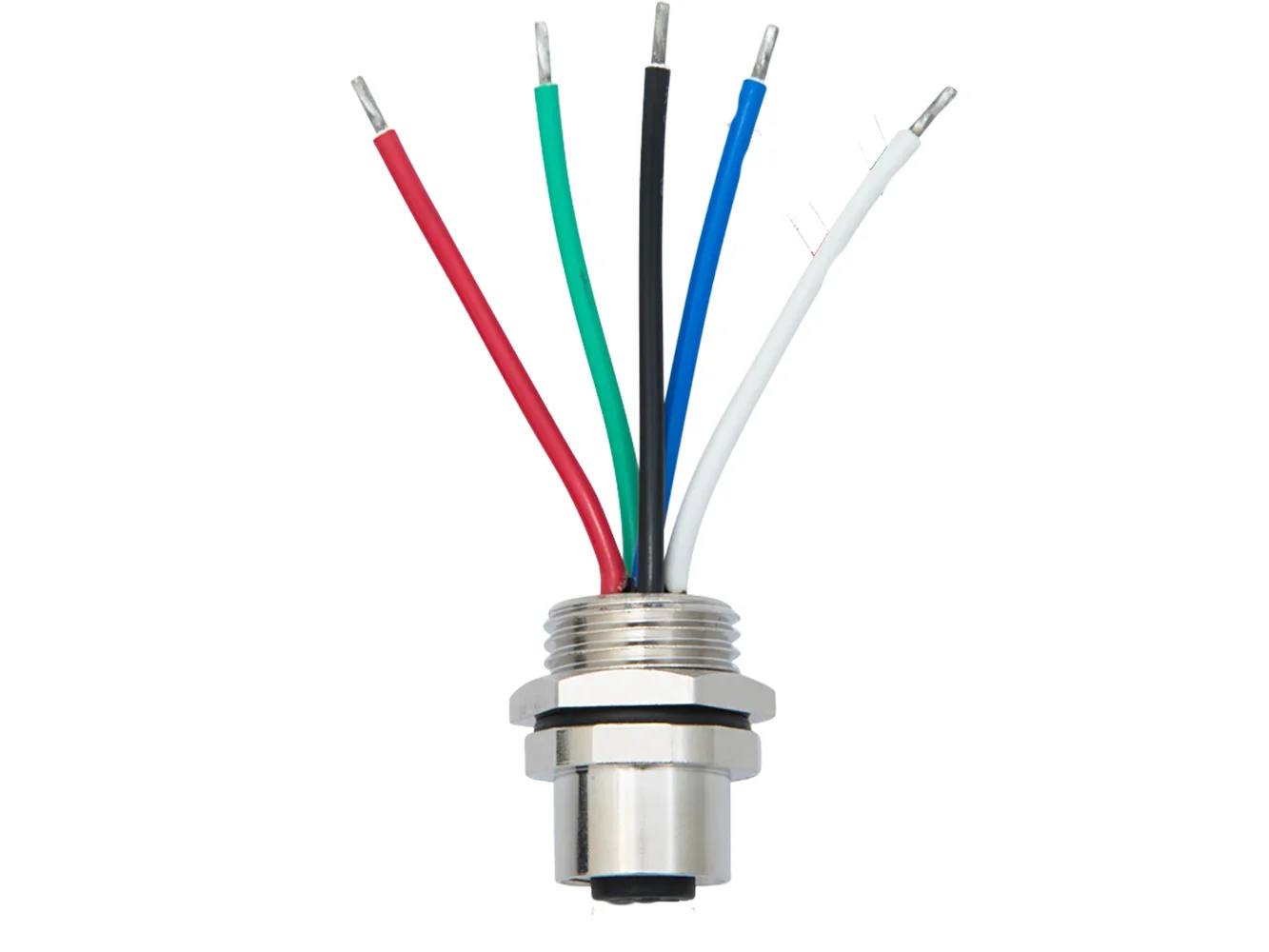

Rear Panel Mount NMEA2000 Wired Micro 5-Pin – Female
Panel-mount wired connectors available from Actisense allow NMEA 2000 installations through watertight bulkheads (or panels) to be achieved.
Waterproof seals ensure the integrity of the NMEA 2000 connection and bulkhead/panel.
The female panel mount wired connector can easily replace any of the existing ‘drop’ glands on the Actisense QNB-1 to create a quick pluggable NMEA 2000 connection option.
The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.
Technical Specifications:
Electrical
- Rated Current – 4A
- Rated Voltage – 60VDC
Mechanical
- Contacts – Brass, gold-plated
- Contact Carrier – Nylon & GF
- Contact Polarization – Standard M12-"A"-Polarization
- Mating Thread – M12
- Housing – Brass, nickel-plated
- Mounting Thread – PG9
- Mounting Nut – Brass, nickel plated – PG9
- Mounting Hole Diameter – 15.3mm
- Wires – 18 AWG (stripped and tinned)
- Wire Jacket – PVC
- Weight – 20g
Approvals and Certifications
- Protection – IP67 (when mated)
- Operating Temperature – -25°C to +90°C
- Connector Specification – Meets IEC61076-2-101
