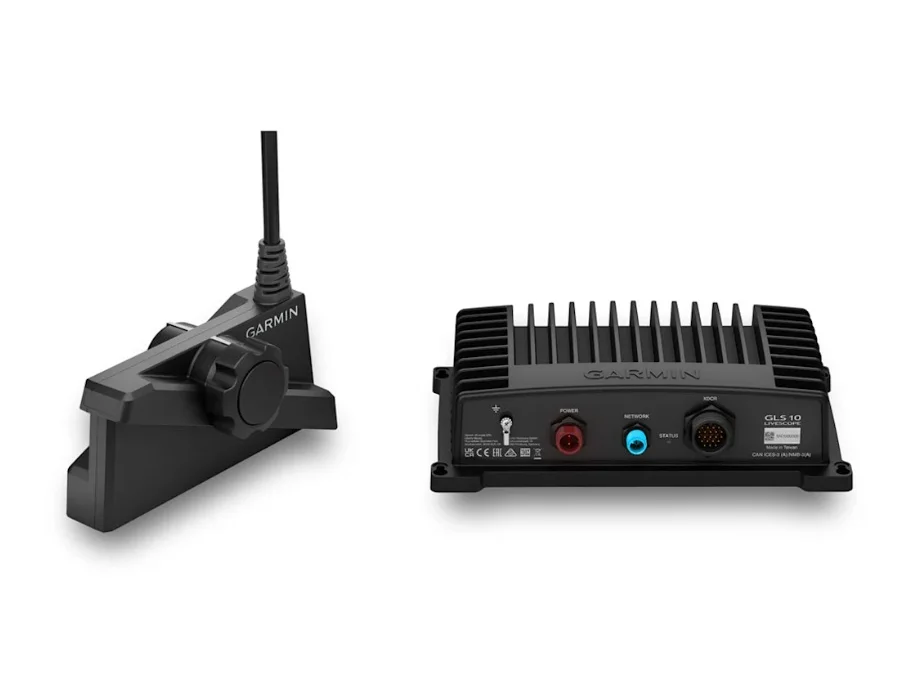

Garmin LiveScope Plus Ice Fishing System
Model: 010-02706-40
- CATCH YOUR LIMIT WITH THE POWER OF LIVESCOPE SONAR
- JUST ADD YOUR COMPATIBLE CHARTPLOTTER, A BATTERY AND … ICE
- USE LIVESCOPE™ FORWARD MODE TO LOCATE FISH AND DRILL WHERE YOU FIND ‘EM
- SEE HOW FISH REACT TO YOUR JIG WITH LIVESCOPE™ DOWN MODE
- LOCATE FISH AT A DISTANCE OF UP TO 200′ IN ANY DIRECTION
- SCAN WITH SHARPER IMAGES AND REDUCED NOISE
UPGRADE YOUR ICE FISHING EXPERIENCE WITH LIVESCOPE PLUS SONAR: When paired with your Garmin chartplotter, this versatile LiveScope Plus package — with LVS34-IF ice fishing transducer, flexible cold-weather transducer cable and all-in-one power cable — provides the essentials to help you find the best spots to drill and fish.
TWO MODES, ONE TRANSDUCER: Adapt your fishing technique with the LiveScope Plus transducer with live, real-time scanning sonar that lets you see under the ice — up to 200′ in any direction.
LIVESCOPE FORWARD: LiveScope Forward mode shows up to 200′ all around you, so you can locate schools of fish and know where to drill the next hole.
LIVESCOPE DOWN: LiveScope Down mode homes in on targets, so you can watch how fish respond to your jig.
SEE FISH IN REAL TIME: Easy-to-interpret live-scanning sonar lets you clearly see images of fish and structure. See your jig as it moves, and even distinguish between species of fish swimming around and below you.
CLEAR VISION: See exactly what you need with reduced noise and fewer artifacts that impede your picture of fish and structure.
CUSTOMIZE YOUR VIEW: Switch up the view on your chartplotter with layout options such as range, gain, color limit and color brightness. Choose from vivid color palettes to see fish and structure in maximum contrast and clarity.
Specifications
| General | |
| Transducer beamwidth | 20° x 135° |
| Transducer cable length | 20 ft |
| Transducer number of pins | 21 |
| Dimension | GLS 10 sonar black box: 9.7" x 5.9" x 2.6" (24.5 x 14.9 x 6.5 cm); LiveScope Plus LVS34-IF transducer: 6.4" x 3.1" x 1.9" (16.2 x 7.8 x 4.8 cm) |
| Weight | GLS 10 sonar black box: 4.3 lbs (2.0 kg); LiveScope Plus LVS34-IF transducer: 2.25 lbs (1.02 kg) |
| Water rating | IPX7 |
| Temperature range | GLS 10 black box: Operating: -15° C to 70° C; LiveScope Plus LVS34-IF transducer: Operating: 0° C to 40° C |
| Electrical Features | |
| Power input | 10-32 V |
| Power usage | 21 W typical, 58 W max |
| Fuse | 10 A |
| Compass-safe distance | 4″ (0.1 m) |
| Sonar Features | |
| Frequency | 530 – 1,100 kHz |
| Transmit power | 500 W |
| Maximum depth | Down and Forward: 200’ (61.0 m) |
| Sonar Type | Live |
| Target Separation @100′ | 14″ |
| Connections | |
| Garmin Marine Network Ports | 1 (small connector) |
What’s in the Box:
- LiveScope Plus LVS34-IF transducer
- GLS™ 10 sonar module
- 0-degree pole mount
- Lithium ion four-in-one power cable
- Hardware
- Documentation
