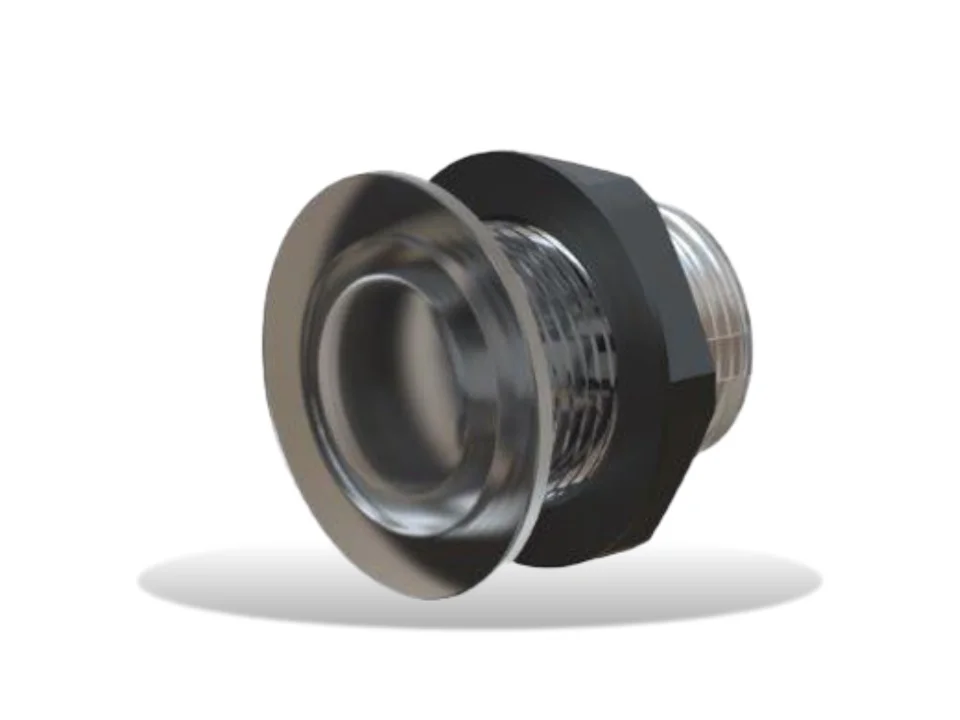

Lumishore Eclipse CL30 Blue & White Courtesy Light 12/24vDC
Model: CL30
ECLIPSE Courtesy Lights are great for illuminating walkways, stairwells, helm stations and other design elements of a boat. Available in dual color blue and white and two other color options.
Constructed of a durable clear acrylic body, completely water sealed and IP67 rated.
Measuring 33mm (1.3 in) in diameter, ECLIPSE Courtesy Lights are small, discreet and easy to install with a 2 wire hookup, flush mountable and fit almost anywhere onboard.
Specifications
| Blue and White (5000 K) | |
| LED Type | 3 x 0.5W Blue LEDs / 3 x 0.5W White LEDs |
| Customer Control Options | On/Off Switch or ECLIPSE Command Center |
| Electrical Installation | Simple 2 Wire Installation |
| Supply Voltage Range | 12V DC Only (10 – 15V DC) |
| Max Current Draw (12/24V DC) | 0.1A |
| Ingress Protection | IP67 |
| Front Diamater (Bezel) | 33mm (1.3) |
| Profile | 3.5mm (0.137 in) |
| Hole Diameter for fitting | 25.4mm (1.0 in) |
| Mechanical Installation | Bulkhead Panel Mount (with marine adhesive) |
| Warranty | 3 Years |
“
