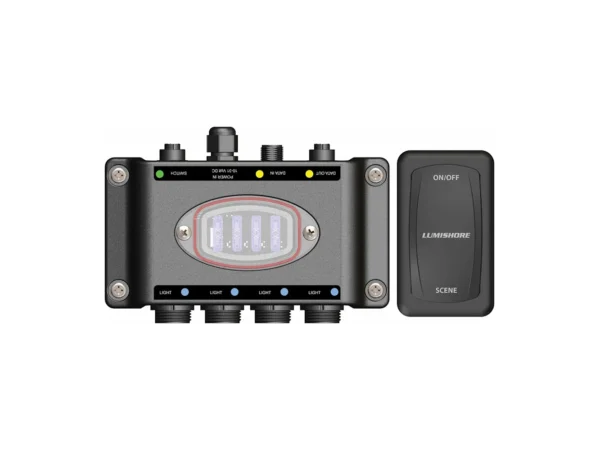

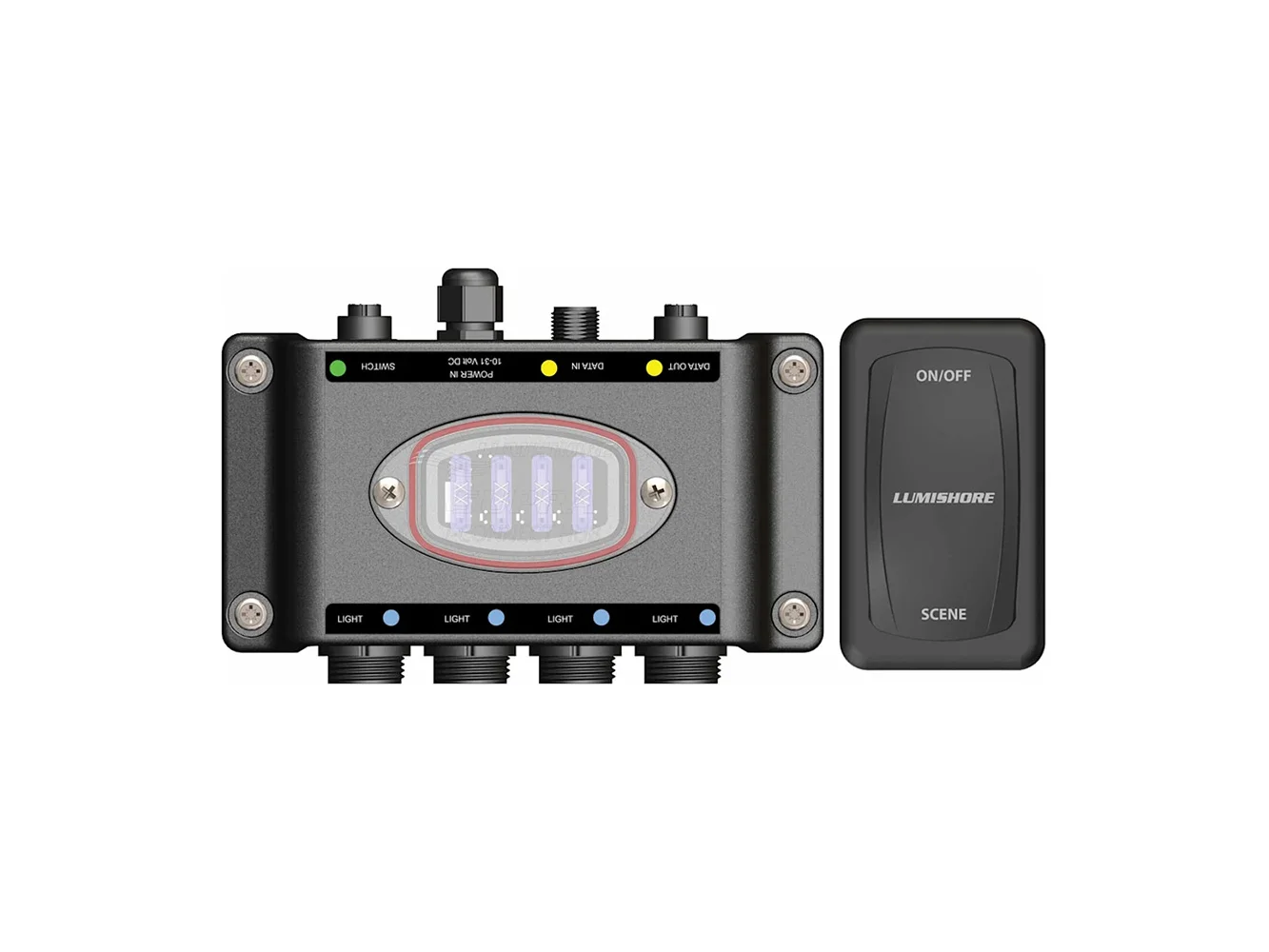

SUPRA THS/TIX i-Connect Installation/Upgrade Kit
The SUPRA Installation/Upgrade Kit enhances the function of your Dual Color SUPRA lights!
It’s plug-and-play junction box makes for easy installation and includes the fuses and easy-connect terminals for the lights and the switch.
This kit is required for all underwater TIX/THX models and optional for the SMX53.
Features:
- Full control via certified MFD or EOS-LUX-SUPRA Display
- Specially Designed for Ease of Installation
- Plug and Play Connections
- IP68 Field Installable Connectors (supplied)
- Built-in Switching Power Relay
- Replaceable Blade Fuse For Each Light
- Status Indication LED for Each Light
- Built-In Noise Filter
Specifications:
- Number of Lights per Hub: 4
- Max Number of Hubs per Installation (Surface Mount): 4 Hubs (16 Lights)
- Connections: SMX – Field Installable Connector (supplied with Hub)
- Fuses: Replaceable Blade Fuses. Each Light Individually Fused
- Status Indication LEDs: Yes – for Each Light
- Voltage Range: 10.5 – 31V DC
- Max Input Current: 40 A
- Max Output Current (i.e., Max Current Per Light): 10 A
- Cable Entry / Exit: IP68 Connections
- Switching Method: Built-in Relay
- Noise Suppression: Built-in Noise Filter
- Reverse Polarity Protection: Yes
- Lumi-Link Compatible: Yes
