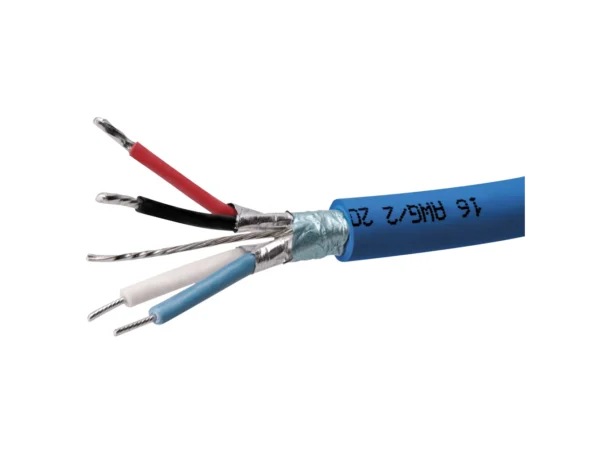

Maretron Mini Bulk Cable - 100 Meter - Blue

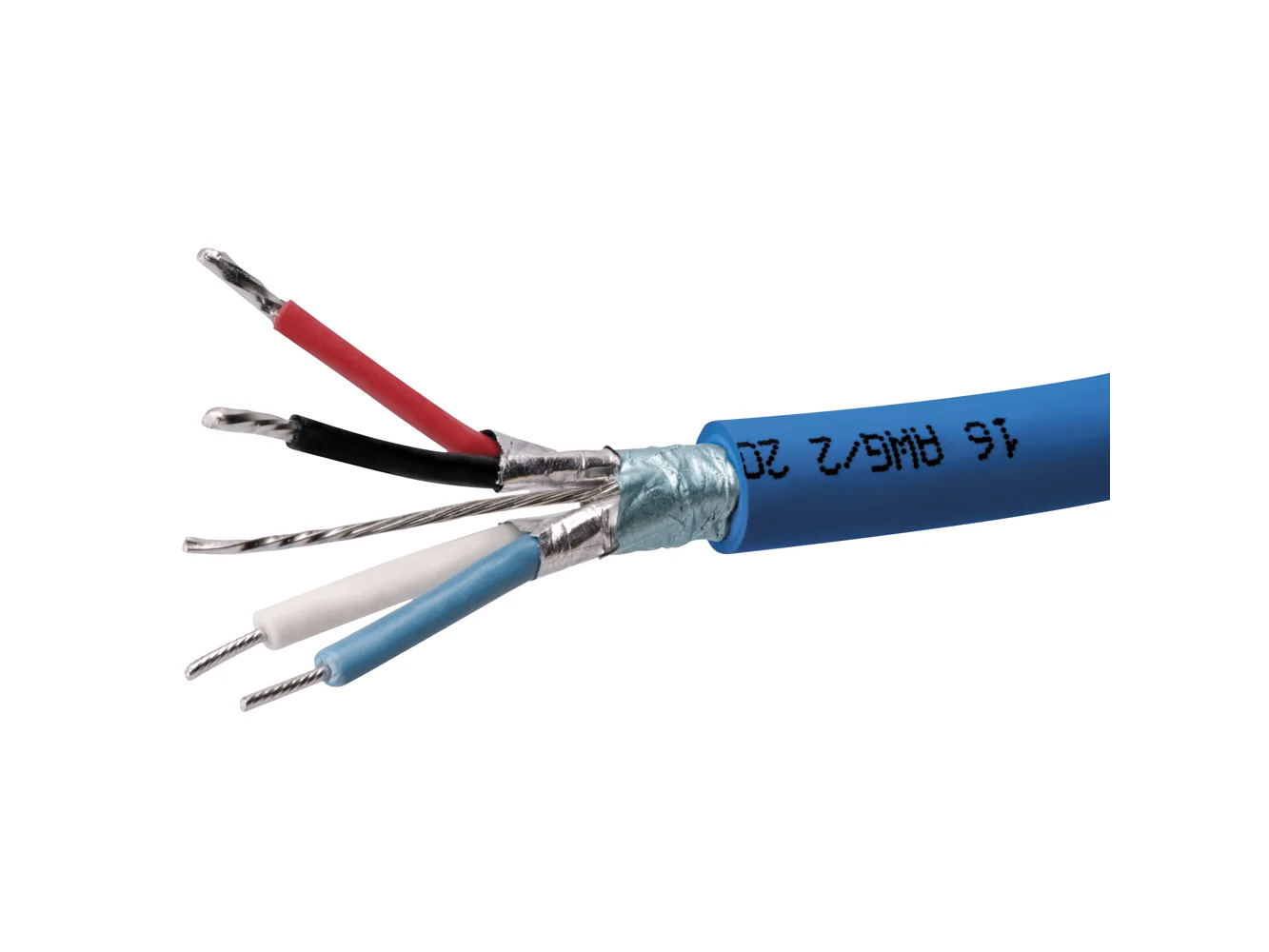

Maretron Mini Bulk Cable - 100 Meter - Blue - Image 2
,

Maretron Mini Bulk Cable – 100 Meter – Blue

$712.05

Maretron
Model: NB1-100C

Available on backorder

SKU: CWR-46967 Categories: , Tags: , , , Brand:
List Price: $756.50

Maretron Mini Bulk Cable – 100 Meter – BlueSpecifications

Overall

  • Outer Jacket Mat/Color:PVC/Blue – NB1, PVC/Gray – NG1
  • Insulation Material: PE (data), PVC (power)
  • Construction: 2×15 (1.45mm) AWG, 2×18 (1.02mm) AWG, 18 (1.02mm) AWG Drain Wire
  • Shielding (3 Levels): Foil (overall), Foil (power pair), Foil (data pair)

    Power Pair

  • Wire: 2×15 (1.45mm) AWG
  • Resistance/Conductor: 3.44 Ohms/1000 ft max
  • Max Amperage: 16 Amps – NB1, 14 Amps – NG1
  • Color Code: Red/Black

    Data Pair

  • Wire: 2×18 (1.02mm) AWG
  • Characteristic Impedance: 120 Ohms +/- 10%
  • Capacitance: 12 pF/1000 ft Max
  • Color Code: White/Blue

    Approvals

  • UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
  • CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
  • NMEA: NMEA 2000 APPROVED
  • IEC: IEC-61162-3
    • Weight 38 lbs
    Dimensions 17 × 16 × 12 in
