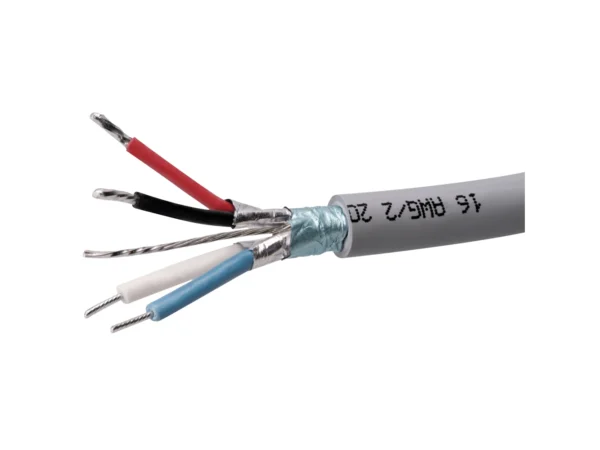

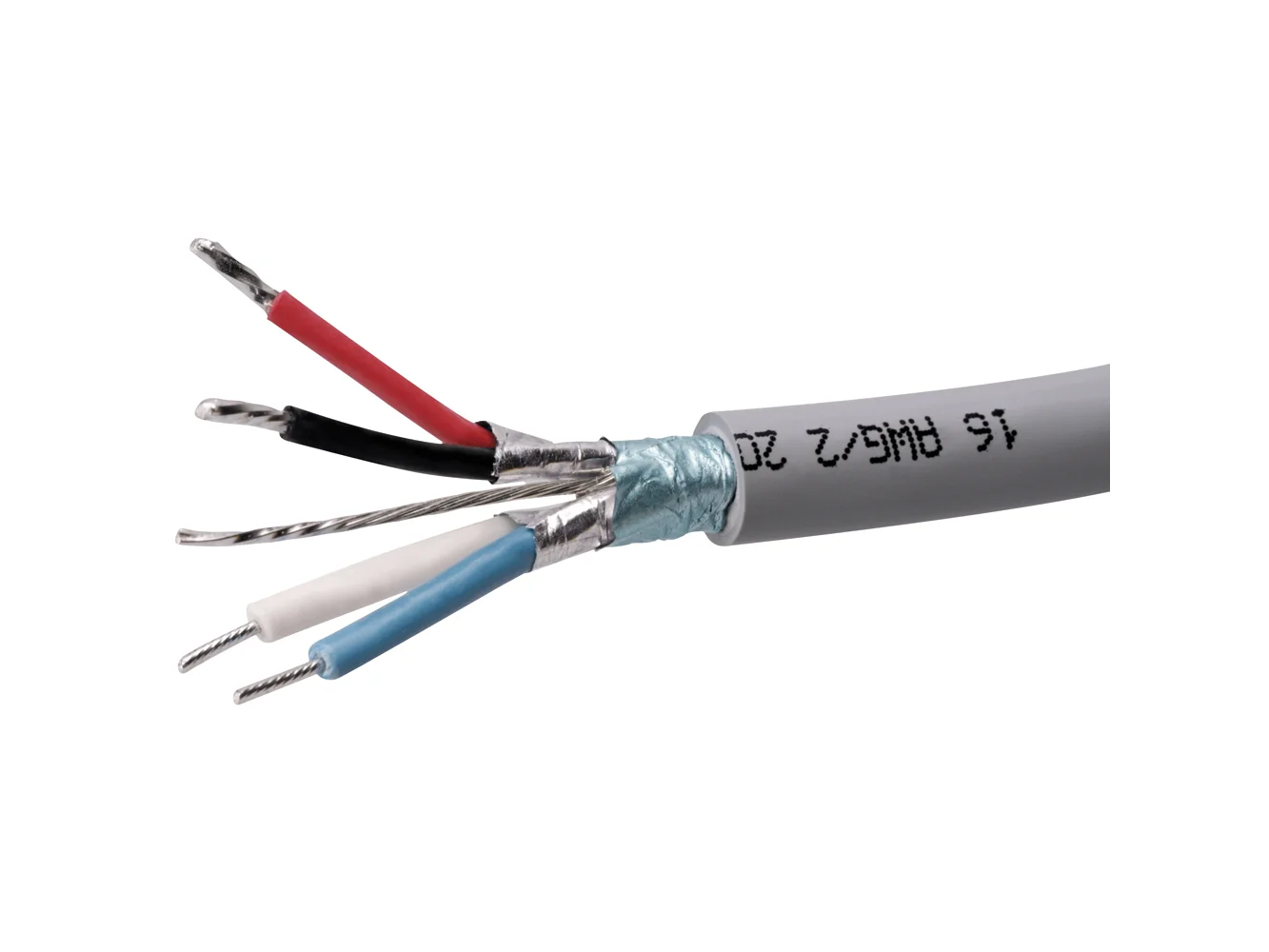

Maretron Mini Bulk Cable – 100 Meter – Gray

Name: Maretron Mini Bulk Cable - 100 Meter - Gray
Brand: Maretron
SKU: CWR-46966
Availability: BackOrder

$747.78

Maretron
Model: NG1-100C

Available on backorder

List Price: $795.00

Maretron Mini Bulk Cable – 100 Meter – Gray

Specifications

Overall

Outer Jacket Mat/Color:PVC/Blue – NB1, PVC/Gray – NG1

Insulation Material: PE (data), PVC (power)

Construction: 2×15 (1.45mm) AWG, 2×18 (1.02mm) AWG, 18 (1.02mm) AWG Drain Wire

Shielding (3 Levels): Foil (overall), Foil (power pair), Foil (data pair)

Power Pair

Wire: 2×15 (1.45mm) AWG

Resistance/Conductor: 3.44 Ohms/1000 ft max

Max Amperage: 16 Amps – NB1, 14 Amps – NG1

Color Code: Red/Black

Data Pair

Wire: 2×18 (1.02mm) AWG

Characteristic Impedance: 120 Ohms +/- 10%

Capacitance: 12 pF/1000 ft Max

Color Code: White/Blue

Approvals

UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V

CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4

NMEA: NMEA 2000 APPROVED

IEC: IEC-61162-3

Weight	35 lbs
Dimensions	12 × 12 × 12 in

Maretron Mini Bulk Cable – 100 Meter – Gray

$747.78

Available on backorder
