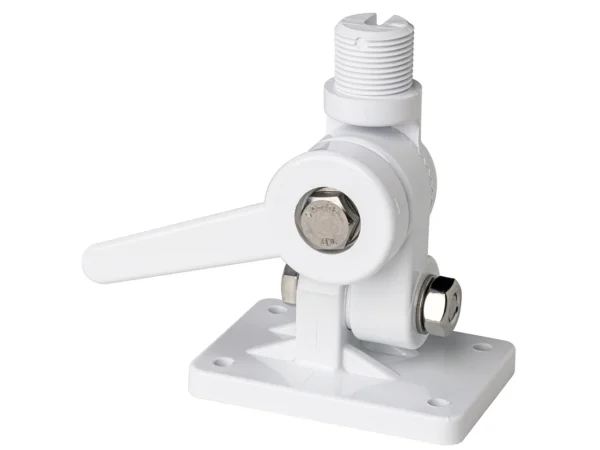

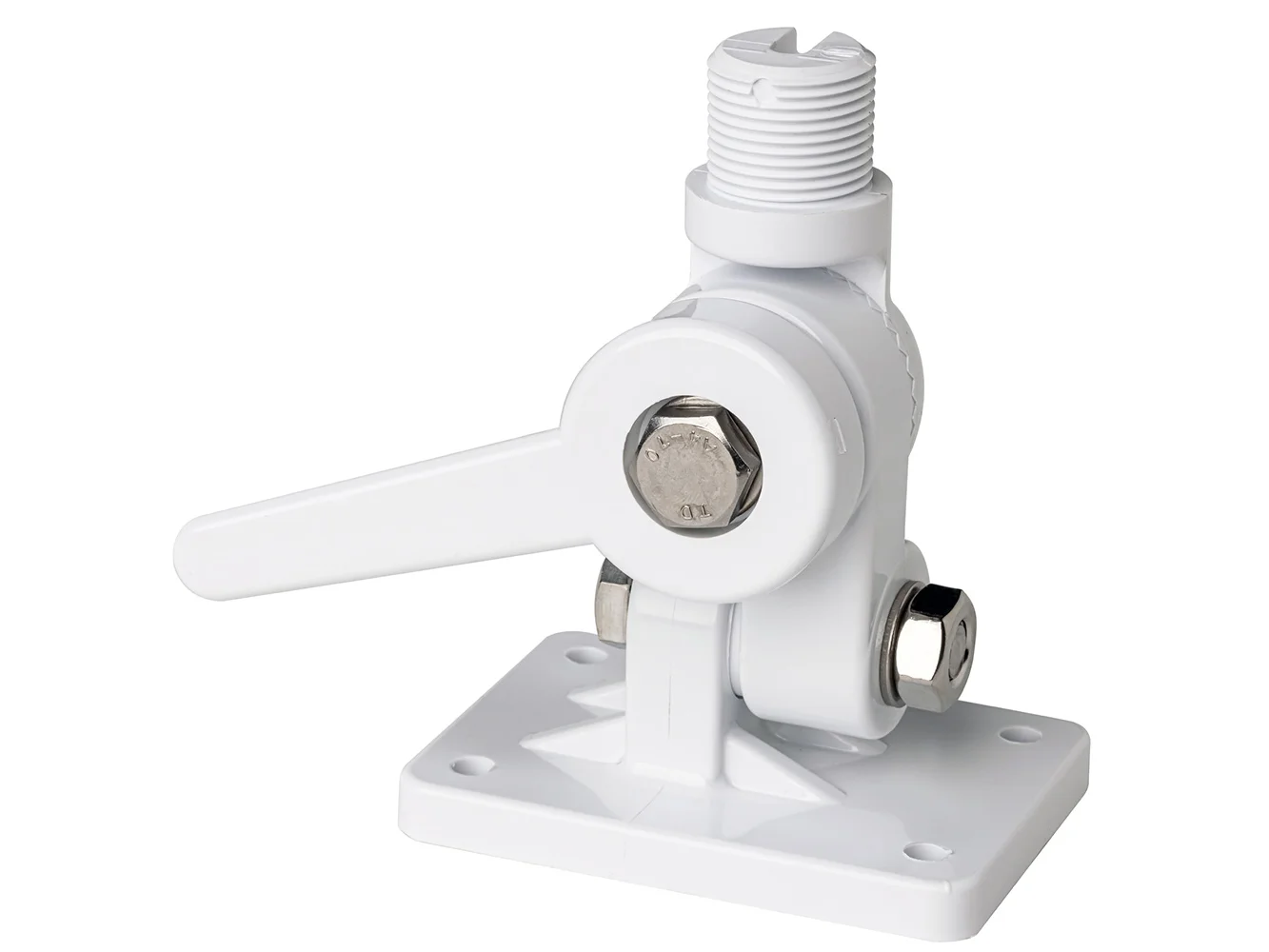

Four-Way Nylon Ratchet Mount – White
The PA-3 mount is designed for installing the antenna on horizontal, inclined, and vertical surfaces, thanks to its 4-way adjustment that allows it to tilt the antenna correctly. Constructed in UV-resistant reinforced nylon, it allows the antenna to fold down with a simple release of the snap handle. Assembled with A4 stainless steel screws and bolts, it guarantees extraordinary durability and high resistance to rust and salt.
The PA-3 base has a specific slot for the passage of the cable that allows the use of cables with pre-installed connectors. The 6.5 mm wide passage is ideal for coaxial cables such as RG-58, RG-59, and similar.
In addition, the PA-3 base has a safety locking key for the cable passage, which guarantees further strength and completeness. The PA-3 base is ideal for mounting all marine antennas with standard 1 “x 14 threads, including all QuickFit range antennas.
Specifications:
- Material: UV-resistant nylon
- Screws & Bolts: Inox A4
- Color: White
- Weight: 390g
| Installation Guide | https://productimageserver.com/literature/installations/110621IN.pdf |
